What is Attapulgite Sea Water Bentonite for HDD?
Key Features
Unique needle-like crystalline structure
High absorption capacity
Strong gel strength in seawater
Non-toxic and environmentally friendly
Complies with strict industrial and drilling fluid standards
Petropath Fluids sources and processes the mineral using advanced quality control measures to maintain consistent performance for HDD and offshore drilling.
Physical & Chemical Properties of Attapulgite Sea Water Bentonite for HDD
Physical Properties
Appearance: Fine, white-to-gray fibrous powder
Particle Size: 0.1–10 microns, providing high surface area (up to 200 m²/g)
Bulk Density: ~0.6 g/cm³
True Density: 2.2–2.5 g/cm³
Absorption: Holds up to 10× its weight in water
Thermal Stability: Maintains structure up to 1,200°C
Rheology: Forms shear-thinning, thixotropic gels ideal for HDD mud systems
Chemical Properties
Rich in magnesium, aluminum, silicon, oxygen
Stable pH range between 3–10
High CEC (20–50 meq/100g) ensures strong ion-binding
Insoluble in water but disperses effectively with agitation
Non-toxic and compliant with environmental regulations
These characteristics make Attapulgite Sea Water Bentonite for HDD a high-performance drilling additive for both freshwater and saltwater operations.
Why Attapulgite Sea Water Bentonite for HDD is the Best Choice
1. Superior Viscosity & Suspension
In HDD operations, maintaining borehole stability is crucial.
Attapulgite Sea Water Bentonite for HDD enhances viscosity, enabling efficient suspension of cuttings even under low water availability or variable formation conditions.
2. Lubrication for Smooth Drilling
Its fibrous structure significantly reduces torque and drag, preventing premature equipment wear. This results in:
Lower mechanical strain
Longer drill string life
Smoother directional control
3. Improved Filtration Control
The clay forms a thin yet durable filter cake that:
Reduces fluid loss
Prevents borehole collapse
Protects sensitive formations
4. Works Perfectly in Saline Environments
Unlike sodium bentonite, which disperses and loses viscosity in saltwater, Attapulgite Sea Water Bentonite for HDD retains its structure and performs consistently.
This makes it ideal for:
Coastal HDD projects
Marine construction
Offshore drilling
Subsea pipeline installations
5. Proven Field Performance
Multiple HDD field trials have demonstrated that using our HDD Grade Attapulgite leads to:
Faster penetration rates
Higher pump efficiency
Reduced mud consumption
Lower overall project cost
Offshore & Saltwater Drilling Advantages
Saltwater Benefits
Rapid gel formation
Strong hydrogen-bonded particle lattice
Predictable rheological properties
Excellent filtration stability
Long-term mud system consistency
Key Advantages of Using Attapulgite Sea Water Bentonite for HDD
✔ Cost-Effective Alternative
More economical than synthetic polymers, with reusability helping operators reduce fluid costs.
✔ Versatile Applications
Used in:
HDD
Oilfield drilling
Civil & marine engineering
Environmental remediation
Pharmaceutical absorbents
✔ Eco-Friendly Mineral
Biodegradable, non-toxic, and suitable for projects near ecological conservation zones.
✔ High-Purity, Quality-Assured Product
Petropath Fluids conducts:
XRD testing
Particle size analysis
Rheological tests
Purity and performance verification

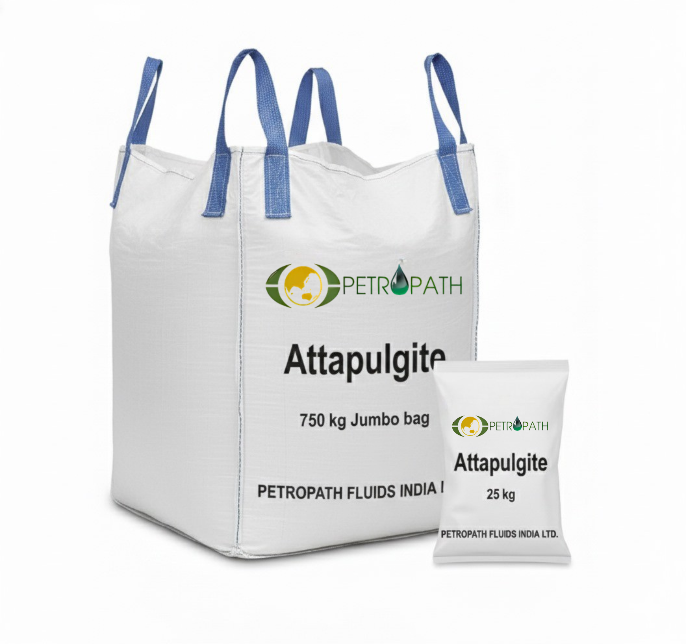

✔ Packaging Options
25 kg multi-wall bags
750 kg jumbo bags
Moisture-resistant liners for long-term storage
Handling & Safety
Safe for industrial use
Avoid inhaling dust during handling
Use PPE (as per OSHA recommendations)
Store in a cool, dry environment
The product is not classified as carcinogenic and is safe for standard drilling operations.
