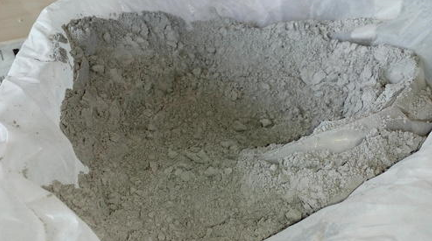

Barite Powder – High Density Weighting Material for Oil & Gas Drilling Fluids
Barite Powder is a critical drilling fluid additive widely used in oil and gas exploration to control formation pressure and increase drilling mud density. Manufactured by Petropath Fluids India Ltd., this drilling grade barium sulfate is specially processed to meet demanding oilfield requirements and ensure reliable performance in drilling operations.
With its naturally high specific gravity and chemical stability, Barite Powder remains the most trusted weighting material in modern drilling fluid systems. The product is manufactured to meet the requirements of API Specification 13A, ensuring consistent quality and performance across drilling applications.
Oilfield drilling environments require reliable mud density control to maintain wellbore stability and prevent formation fluid influx. By adding Barite Powder to drilling mud systems, operators can effectively increase fluid density while maintaining optimal drilling conditions.
This product performs efficiently in both water-based drilling mud systems (WBM) and oil-based drilling mud systems (OBM), making it suitable for a wide range of drilling environments, including deep wells and high-pressure formations.
Barite Powder is a finely ground mineral composed primarily of barium sulfate (BaSO₄). Due to its high density and chemical inertness, it is widely used as a weighting agent in drilling fluids for oil and gas exploration.
When drilling deep wells, formation pressure increases significantly. Drilling fluids must be carefully weighted to prevent well blowouts, stabilize the borehole, and ensure safe drilling operations. Barite Powder provides an effective solution by increasing the density of drilling mud without negatively affecting fluid performance.
The mineral content and particle size distribution of this Barite Powder are carefully controlled to deliver consistent drilling performance. The fine particle structure allows efficient mixing and ensures uniform density throughout the circulating mud system.
Because Barite Powder is chemically inert and non-reactive, it does not interfere with drilling fluid chemistry. This makes it compatible with various drilling fluid additives used in modern oilfield operations.
Key Applications
Barite Powder plays a vital role in several drilling applications across oil and gas exploration projects.
Primary applications include:
• Oil and gas drilling operations
• Weighting agent for drilling fluid systems
• Pressure control in drilling mud
• Wellbore stabilization during drilling
• Deep well and offshore drilling
• High-pressure formation drilling operations
In these environments, Barite Powder helps maintain proper hydrostatic pressure inside the wellbore, reducing the risk of blowouts and ensuring efficient drilling performance.
Advantages of Barite Powder
The widespread use of Barite Powder in oilfield drilling is due to its unique physical and chemical properties.
High Specific Gravity
The naturally high density of Barite Powder allows drilling fluids to achieve the required weight for controlling formation pressure.
Efficient Mud Weighting
Because of its high density, only a moderate amount of Barite Powder is needed to increase drilling fluid density, minimizing solids content.
Improved Wellbore Stability
Maintaining proper mud weight helps stabilize the wellbore and prevents collapse or formation damage during drilling.
Chemical Inertness
Barite Powder does not react with drilling fluid chemicals, making it compatible with different drilling fluid systems.
Cost-Effective Drilling Solution
Compared to alternative weighting materials, Barite Powder offers excellent cost efficiency for large-scale drilling operations.
Environmentally Stable Material
The mineral is naturally occurring and generally considered non-toxic when handled according to industry guidelines.
Technical Properties
| Parameter | Specification |
|---|---|
| Chemical Name | Barium Sulfate (BaSO₄) |
| Appearance | Fine beige / grey powder |
| Specific Gravity | 4.10 – 4.20 |
| Bulk Density | 150 lb/ft³ |
| Bulk Density | 2160 kg/m³ |
| Moisture Content | Less than 1% |
| Mineral Content | Minimum 94% Barium Sulfate |
| Residue on 200 Mesh (74 µm) | Maximum 3% |
| Residue on 325 Mesh (44 µm) | Minimum 5% |
Mixing & Application Guidelines
Proper mixing is essential for achieving the desired mud density when using Barite Powder in drilling fluid systems.
Recommended procedures include:
• Add Barite Powder slowly through a high-shear mixer or jet hopper
• Ensure continuous circulation of the drilling mud system
• Maintain adequate fluid volume to prevent dehydration of the drilling fluid
• Keep the wellbore filled with weighted mud during drilling operations
Example Mud Weight Calculation
If the starting drilling fluid weight is 9 lb/gal, adding approximately 134 lb of Barite Powder to 100 gallons of drilling mud can increase the fluid weight to 10 lb/gal, while increasing the total volume to approximately 104 gallons.
This demonstrates the efficiency of Barite Powder in increasing drilling fluid density while maintaining manageable fluid volumes.
Handling & Safety
Under standard industrial classification systems, Barite Powder is generally considered a non-hazardous mineral product. However, standard industrial safety practices should be followed during handling and transportation.
Recommended safety measures include:
• Use appropriate dust protection equipment
• Store the product in dry and well-ventilated areas
• Avoid excessive inhalation of mineral dust
• Follow guidelines provided in the Material Safety Data Sheet (MSDS)
Proper handling ensures safe storage and optimal product performance in drilling operations.
Packaging Options
Petropath Fluids India Ltd. supplies Barite Powder in multiple packaging formats to meet project and export requirements.
Available packaging options include:
• 50 kg industrial bags
• 1.5 MT jumbo bags
• Bulk export packaging for oilfield projects
Custom packaging solutions can also be arranged based on client requirements and international shipping standards.
Why Choose Petropath Fluids India Ltd.
Petropath Fluids India Ltd. is a reliable manufacturer and supplier of drilling chemicals and oilfield additives used in drilling fluid systems worldwide.
Our Barite Powder is produced under strict quality control standards to ensure consistent drilling performance across various oilfield environments.
Key advantages of working with us include:
• High-quality API-compliant Barite Powder
• Consistent mineral composition and particle size distribution
• Reliable global supply capability
• Technical support for drilling fluid programs
• Bulk export capability for international oilfield projects
Our technical team works closely with drilling operators to provide products that meet modern oilfield requirements and ensure efficient drilling operations.
Conclusion
Barite Powder is one of the most essential materials used in oil and gas drilling fluid systems. Its ability to increase drilling mud density, control formation pressure, and stabilize the wellbore makes it indispensable for modern drilling operations.
The high density, chemical stability, and compatibility of Barite Powder with multiple drilling fluid systems make it the preferred weighting agent for oilfield drilling projects worldwide.
Petropath Fluids India Ltd. supplies premium drilling grade Barite Powder designed to meet industry standards and deliver reliable performance in demanding drilling environments.
For technical assistance, bulk orders, or export inquiries, contact our team to learn more about our oilfield drilling solutions.
