CO₂ Cartridge in Mud Testing Equipment
In modern oil and gas drilling operations, precision and consistency in mud testing play a critical role in ensuring wellbore stability, operational safety, and cost control. Every laboratory test — from fluid loss measurement to mud density evaluation — depends heavily on stable and controlled pressurization. This is where the CO₂ cartridge in mud testing equipment becomes an essential component.
Designed to deliver clean, instant, and reliable pressure, CO₂ cartridges are widely used across drilling fluid testing equipment worldwide. Their compact design, high-purity gas filling, and universal compatibility make them indispensable in both laboratory and field environments.
Whether used in filter presses or pressurized mud balances, the CO₂ cartridge in mud testing equipment ensures accuracy, efficiency, and repeatability — three pillars of successful drilling operations.
What Is a CO₂ Cartridge in Mud Testing Equipment?

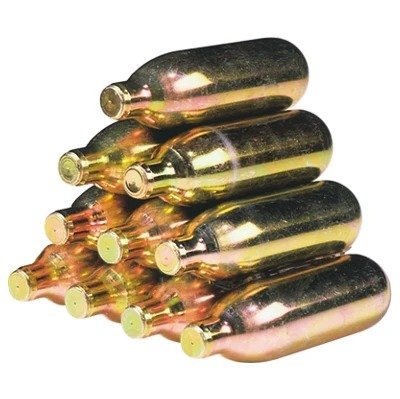

A CO₂ cartridge in mud testing equipment is a small, sealed steel cylinder filled with high-purity carbon dioxide gas. When connected to mud testing instruments, it provides controlled pressure required to conduct standardized drilling fluid tests.
Unlike mechanical pumps or air compressors, CO₂ cartridges offer:
Immediate pressure availability
Stable output without fluctuations
Clean and oil-free gas supply
Because of these advantages, CO₂ cartridges are widely adopted as standard mud testing equipment accessories in oilfield laboratories.
Why CO₂ Cartridges Are Preferred in Mud Testing
The reliability of drilling data depends on pressure stability. Even minor variations can affect filtration results, emulsion stability readings, and density measurements.
The CO₂ cartridge in mud testing equipment provides a dependable solution due to the following reasons:
✔ Consistent Pressure Output
CO₂ cartridges deliver pressure up to approximately 850 psi at room temperature, ensuring repeatable test conditions across multiple samples.
✔ Compact and Portable Design
Their small size allows easy transportation to remote drilling locations, making them ideal for mobile mud labs and field testing operations.
✔ Clean and Contamination-Free
High-purity CO₂ gas prevents chemical contamination of drilling fluid samples, ensuring reliable laboratory results.
✔ Easy Installation and Replacement
Disposable cartridges allow quick replacement without technical complexity or downtime.
Technical Specifications Overview
A standard CO₂ cartridge in mud testing equipment typically includes:
Material: High-strength steel cylinder
Gas Filling: ≥ 99.9% pure CO₂
Capacity: 45–60 grams
Working Pressure: ~850 psi at 21°C
Burst Pressure: Above 1800 psi
Dimensions: Approx. 88 mm × 22 mm
Thread Type: 3/8″-24 UNF
Operating Temperature: −20°C to +50°C
These specifications ensure safe performance even under demanding drilling conditions.
Applications in Drilling Fluid Testing Equipment
The CO₂ cartridge in mud testing equipment supports several critical oilfield testing tools.
🔹 API Low Pressure Filter Press
Used to apply standard pressure for measuring fluid loss and filter cake properties.
🔹 HPHT Filter Press
Provides controlled gas pressure during high-pressure, high-temperature filtration testing.
🔹 Pressurized Mud Balance
Helps eliminate entrapped air to deliver accurate mud density readings.
🔹 Field Testing Operations
Ideal for offshore rigs, remote sites, and mobile mud laboratories due to portability.
Because of their versatility, CO₂ cartridges are recognized globally as essential oilfield mud testing supplies.
Benefits of Using High-Quality CO₂ Cartridges
Using a certified and high-purity CO₂ cartridge in mud testing equipment delivers measurable operational advantages:
🎯 Improved Test Accuracy
Stable pressure ensures consistent laboratory data.⚡ Operational Efficiency
Eliminates bulky compressors and reduces setup time.💧 Sample Integrity Protection
Oil-free CO₂ maintains chemical purity of drilling fluids.🛡️ Enhanced Safety
Designed with high burst pressure margins.🌱 Environmentally Responsible
Safe disposal and transportation compliance.
These benefits directly contribute to safer drilling and better decision-making.
Why CO₂ Cartridges Matter in Oilfield Performance
Drilling fluid performance directly impacts:
Rate of penetration
Wellbore stability
Formation protection
Equipment life
Accurate testing ensures that mud properties remain within operational limits. The CO₂ cartridge in mud testing equipment plays a silent yet crucial role by providing the pressure needed to generate dependable results.
Without consistent pressurization, even the most advanced drilling fluid testing equipment cannot deliver accurate data.
Why Choose a Trusted Manufacturer?
Quality variations in CO₂ cartridges can lead to pressure instability, gas leakage, or inaccurate readings. Choosing a reliable supplier ensures:
Consistent gas purity
Precision manufacturing
API compatibility
Reliable field performance
High-quality mud testing equipment accessories significantly reduce operational risk and improve test reliability.
Conclusion
The CO₂ cartridge in mud testing equipment may appear small, but its role in oilfield operations is critical. From filter press testing to mud balance measurements, it ensures stable pressure, accurate data, and consistent performance.
By using high-purity CO₂ cartridges designed for drilling fluid testing equipment, operators can improve laboratory reliability, enhance safety, and support better drilling decisions.
When accuracy matters most, choosing the right CO₂ cartridge makes all the difference.
Looking for a dependable CO₂ cartridge in mud testing equipment for your drilling operations?
📩 Contact our technical team today to get expert guidance, product specifications, and support for your drilling fluid testing requirements.
Reliable testing starts with reliable pressure.
