Drilling Fluid Mixing Hopper Delivering Superior Mixing Power for Modern Drilling

Drilling Fluid Mixing Hopper for Superior Mud Control & Efficiency

In modern drilling operations, efficiency, consistency, and reliability are essential for safe and successful well construction. One of the key components enabling this performance is the Drilling Fluid Mixing Hopper, a vital piece of equipment designed to ensure uniform blending of drilling additives into the mud system. At Petropath Fluids India Ltd., we engineer high-quality hoppers that deliver unmatched mixing power, improve fluid stability, and minimize operational downtime. Whether used in onshore rigs or offshore platforms, our hoppers are built to optimize performance in even the toughest drilling environments.

What Makes the Drilling Fluid Mixing Hopper Essential?

Drilling fluids, often called drilling mud, play a crucial role in wellbore stability, lubrication, and cuttings transport. To enhance these properties, additives such as barite, bentonite, and polymers must be thoroughly blended. This is where the Drilling Fluid Mixing Hopper becomes indispensable. It ensures that every additive disperses smoothly without clumping, resulting in a stable and efficient mud system.
Petropath’s design is not just about mixing; it’s about mastering the science of fluid dynamics to ensure consistent performance on every job.

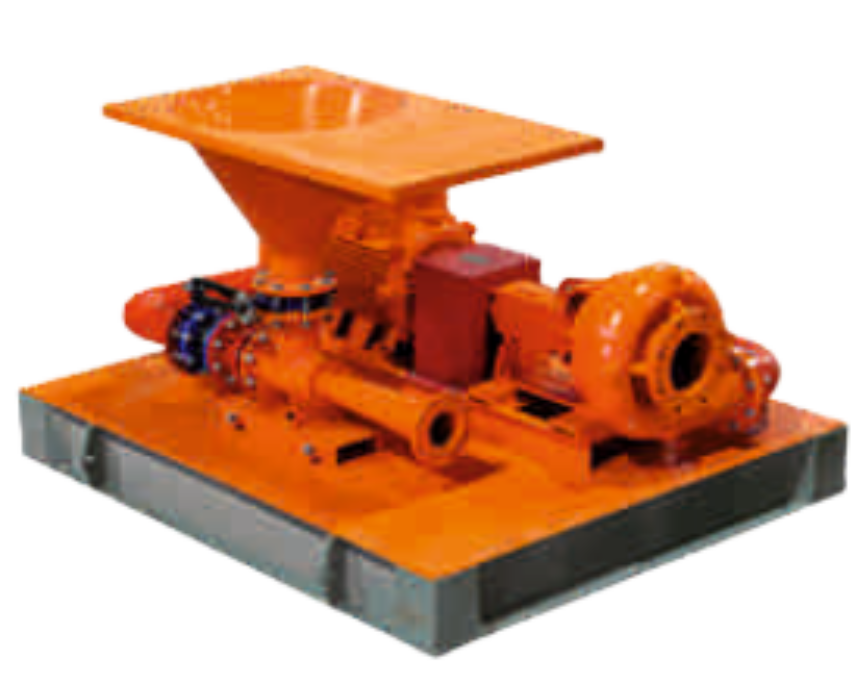

Drilling Fluid Mixing Hopper

Engineered for High-Shear & High-Precision Mixing

At the core of our system is the Venturi Mixing Hopper, a technologically advanced design that uses the Venturi principle to draw additives into the fluid stream. As drilling fluid flows through the hopper, a pressure drop creates strong suction, pulling in dry or liquid additives. The high-velocity flow produces shear mixing that guarantees complete homogenization.
This not only speeds up the mixing process but also ensures uniform mud properties—critical for maintaining wellbore stability during drilling.

Key Features of Petropath’s Mud Mixing Hopper

Our Mud Mixing Hopper is engineered for superior performance, operator convenience, and long-term durability. Key features include:

  • High-shear Venturi design for fast and efficient mixing

  • Robust carbon steel or stainless steel construction

  • Effective dispersion of barite, polymers, and bentonite

  • Adjustable flow control valve for customized operations

  • Smooth integration with mud tanks and pumps

  • Low maintenance and extended service life

  • Safe, reliable, and easy operation

These features make our oilfield mixing equipment ideal for a range of drilling conditions and chemical additives.

Technical Specifications

ParameterSpecification
TypeVenturi Mixing Hopper
Capacity600–1500 L/min
Inlet Size2” or 3”
Outlet Size4” or 6”
Working Pressure0.2–0.6 MPa
MaterialCarbon Steel / Stainless Steel
ConnectionFlanged / Hammer Union
MountingSkid-mounted / Tank-top
Custom configurations are available upon request for specialized drilling requirements.

How the Drilling Mud Mixing System Operates

The drilling mud mixing system follows the venturi principle—where high-speed flow causes a drop in pressure, generating suction. This principle allows solid and liquid additives to be drawn in easily while preventing clogging.

As a result:

  • Mixing becomes faster

  • Chemical wastage is significantly reduced

  • Mud properties remain consistent

  • Operational efficiency increases

This method of mixing has proven to be one of the most effective solutions in the global oilfield industry.

Advantages of Using Petropath’s Mixing Hopper

Choosing Petropath’s Drilling Fluid Mixing Hopper provides several operational benefits:

⏱ Faster Mixing Time

Quick chemical incorporation reduces rig time and improves overall drilling efficiency.

⚖ Uniform Mud Properties

Consistent fluid helps maintain wellbore stability and enhances drilling safety.

💡 Reduced Chemical Costs

Efficient mixing minimizes additive waste.

🔧 Easy Integration

Compatible with existing mud tanks, mixing pumps, and circulation systems.

🛡 Durable & Low Maintenance

Built for long-term reliability in harsh drilling environments.

Applications Across Drilling Operations

Our hopper is designed for versatility and can be used in:

  • Onshore and offshore drilling rigs

  • Water-based and oil-based mud systems

  • High-density drilling fluid preparation

  • Mud plants and centralized mixing units

Wherever drilling fluids are prepared, our hopper ensures performance you can trust.

Safety & Maintenance Guidelines

To maintain optimal performance:

  • Ensure proper pressure levels during operation

  • Avoid overloading the hopper with too much powder

  • Routinely inspect valves and the venturi throat

  • Clean the hopper after each use to prevent blockages

These practices lead to long-term reliability and smooth operations throughout the drilling process.

Optional Customizations

Petropath offers customizable solutions to meet unique drilling requirements:

  • Stainless steel 316 for corrosive environments

  • Integrated flow meter for precision control

  • Skid-mounted or trailer-mounted options

  • PLC automation for advanced operations

Our engineering team ensures every unit perfectly matches your operational needs.

Why Choose Petropath Fluids India Ltd.?

With decades of expertise and a strong global presence, Petropath has become a trusted partner in oilfield mixing equipment. Our Drilling Fluid Mixing Hopper is engineered to elevate overall drilling performance through efficiency, safety, and reliability. The combination of robust design, modern engineering, and exceptional customer support makes us the preferred choice for drilling contractors around the world.

Conclusion

The Drilling Fluid Mixing Hopper from Petropath Fluids India Ltd. is more than just a mixing device—it is a strategic investment in drilling quality, safety, and long-term performance. With its advanced Venturi design, strong construction, and customization options, it ensures consistent mud properties, reduced chemical consumption, and seamless integration into your drilling systems.

Get in Touch:

We provide worldwide delivery, custom configurations, and technical support tailored to your operational needs.
