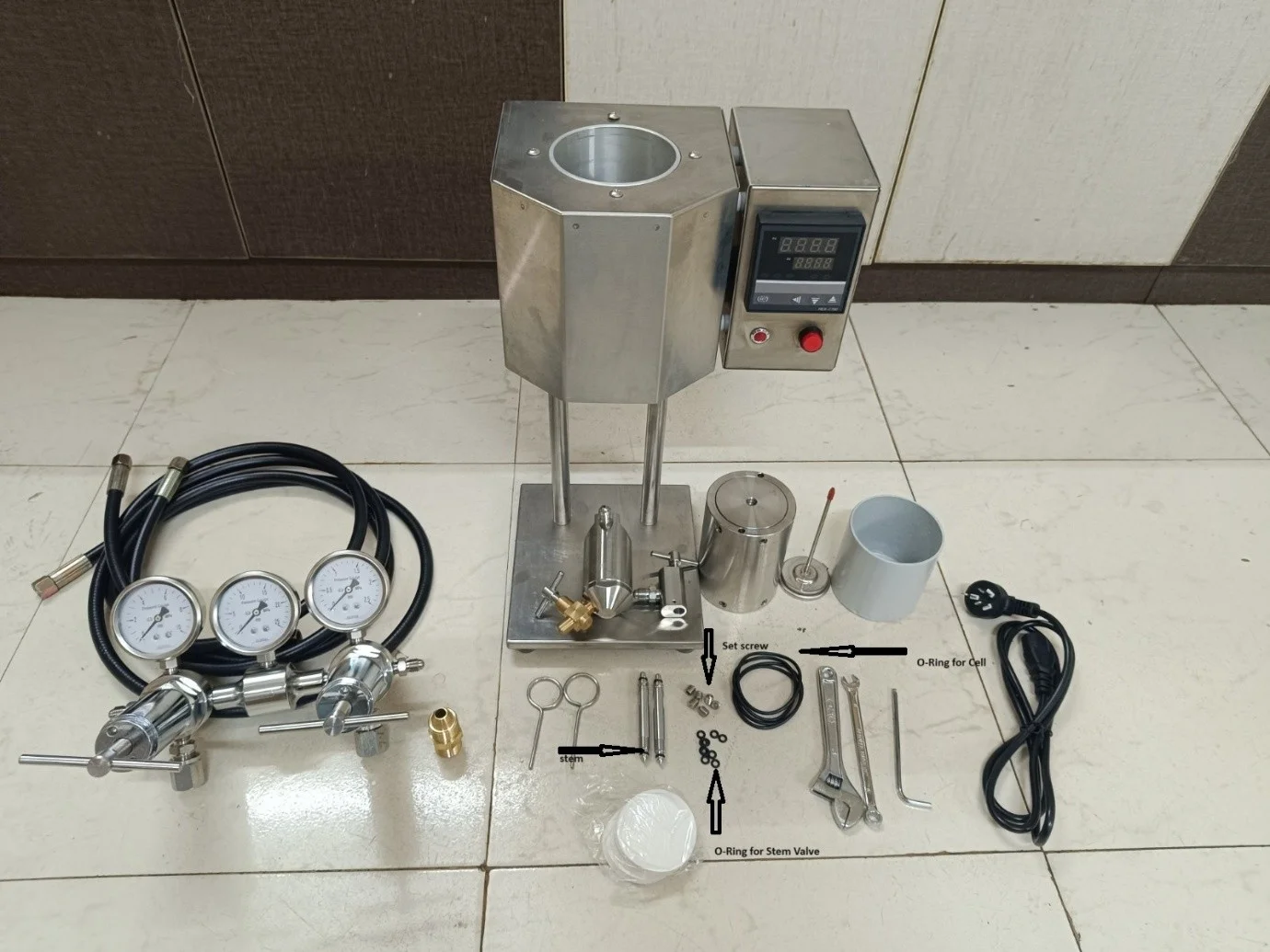

HTHP Filter Press 175 ml: Advanced High-Pressure Filtration Testing for Reliable Drilling Decisions

In modern oil and gas drilling operations, understanding how drilling fluids behave under extreme downhole conditions is critical. High pressure and high temperature can significantly impact fluid loss, filter cake formation, and overall wellbore stability. To address these challenges, Petropath Fluids India Ltd. offers the HTHP Filter Press 175 ml, a laboratory-grade solution engineered for accurate and repeatable filtration testing under simulated downhole conditions.

Designed for precision, safety, and reliability, the HTHP Filter Press 175 ml supports drilling engineers, laboratory professionals, and researchers in making informed drilling fluid decisions in demanding environments.

Precision Testing for Demanding Drilling Environments

At Petropath Fluids India Ltd., we deliver advanced laboratory solutions that support critical drilling decisions. The HTHP Filter Press 175 ml is specifically developed to evaluate drilling fluid filtration performance at elevated temperatures and pressures. By closely simulating real wellbore conditions, this equipment enables laboratories to predict downhole behavior with confidence.

Whether used in research and development, quality control, or field laboratory applications, this drilling fluid laboratory equipment ensures consistent and dependable results.

What Is the HTHP Filter Press 175 ml?

The High Pressure High Temperature Filter Press is a specialized laboratory testing device used to measure fluid loss and filter cake characteristics of drilling fluids under extreme conditions. The 175 ml sample cup size makes it a globally accepted standard for HTHP filtration testing.

The HTHP Filter Press 175 ml allows users to expose drilling fluids to controlled high temperature and pressure, helping evaluate performance beyond conventional API filtration limits. This makes it an essential tool for modern drilling fluid laboratories working with complex well conditions.

Why HTHP Filtration Testing Is Critical

As drilling moves into deeper and more challenging reservoirs, standard filtration tests are no longer sufficient. Drilling fluid filtration testing under HTHP conditions plays a vital role in preventing operational risks and non-productive time.

Key benefits of HTHP filtration testing include:

Predicting fluid loss at elevated temperature and pressure
Evaluating filter cake quality and formation sealing behavior
Optimizing drilling fluid formulations for extreme environments
Reducing formation damage and differential sticking risks

By using HTHP filtration equipment, laboratories gain valuable insights into fluid performance before deployment in the field.

Key Features of the HTHP Filter Press 175 ml

The HTHP Filter Press 175 ml by Petropath is engineered to meet the highest laboratory standards while ensuring user safety and ease of operation.

Key features include:

Standard 175 ml mud sample cup
High-pressure, high-temperature simulation capability
Robust laboratory-grade construction for long service life
Safe and user-friendly operation
High accuracy and repeatability for consistent results

These features make the equipment suitable for both centralized laboratories and field testing units.

Major Technical Parameters

The HTHP Filter Press 175 ml is designed with precise technical specifications to support demanding test conditions.

Parameter	Specification
Power Supply	220V ±5%, 50 Hz
Power Consumption	400 W
Working Temperature	Up to ~232°C
Working Pressure (Mud Sample Cup)	4.2 MPa (600 PSI)
Back Pressure Tester	0.7 MPa (100 PSI)
Effective Filtration Area	22.6 cm²
Limiting Pressure (Mud Sample Cup)	6 MPa (870 PSI)
Mud Sample Cup Capacity	175 ml
Gas Source	Nitrogen or Carbon Dioxide (oil- and moisture-free)
Overall Dimensions	530 × 465 × 334 mm
Gross Weight	36 kg

These specifications ensure reliable operation under high-stress laboratory conditions.

Applications of the HTHP Filter Press 175 ml

The versatility of the HTHP Filter Press 175 ml makes it suitable for a wide range of drilling fluid applications, including:

Water-based, oil-based, and synthetic-based drilling fluids
High-pressure, high-temperature wells
Drilling fluid research and development
Quality control and performance evaluation
Field and centralized drilling fluid laboratories

This drilling fluid laboratory equipment is ideal for organizations focused on performance optimization and risk reduction.

Why Choose Petropath Fluids India Ltd.

Petropath Fluids India Ltd. is a trusted name in drilling fluid services and laboratory equipment. Our commitment to quality, innovation, and reliability is reflected in every product we deliver.

Proven expertise in drilling fluid technology
High-quality, durable laboratory equipment
Solutions designed for real-world drilling challenges
Reliable support for laboratory and field operations

The HTHP Filter Press 175 ml is a testament to our dedication to precision testing and operational excellence.

Conclusion

The HTHP Filter Press 175 ml by Petropath delivers reliable, repeatable, and precise filtration testing under high-pressure and high-temperature conditions. By enabling accurate evaluation of drilling fluid performance, it helps laboratories minimize risk, improve formulation design, and support successful drilling operations.

For professional drilling fluid laboratories seeking dependable HTHP filtration equipment, the HTHP Filter Press 175 ml remains an essential and trusted testing solution.

📞 Get in Touch

Looking for advanced drilling fluid testing solutions? Contact Petropath Fluids India Ltd. to learn more about the HTHP Filter Press 175 ml and our complete range of laboratory equipment.
