HTHP Filter Press for Powerful High-Pressure Filtration Accuracy in Drilling Operations

HTHP Filter Press – 175 ml model is a specialized laboratory instrument designed to evaluate fluid loss and mud cake characteristics under extreme wellbore conditions. Built with a robust structure, an efficient heating system, and advanced pressure control, this High Temperature High Pressure Filter Press replicates real downhole environments to deliver accurate and reliable test data.

Used extensively in petroleum laboratories, drilling R&D centers, and field testing units, the HTHP Filter Press ensures drilling fluids maintain stability under high temperature and high pressure. This makes it an indispensable tool for professionals working with water-based muds, oil-based muds, and cement slurries.

Understanding the HTHP Filter Press – 175 ml

The HTHP Filter Press plays a key role in the evaluation of drilling fluid performance when exposed to demanding conditions similar to deep and ultra-deep wells. It measures filtrate volume, fluid loss behavior, and mud cake quality at temperatures up to 232 °C and pressure levels up to 4.2 MPa.

Manufactured by Petropath Fluids India Ltd., this filtration device meets global standards and provides long-term operational reliability.

Key Design Features

175 ml mud sample cup with optional through-hole
Insulated heating jacket ensuring uniform heat distribution
High efficiency thermal control
Suitable for drilling fluid filtration and cement slurry testing
Simple operations designed for laboratory and field environments

Technical Specifications for High-Accuracy Testing

Parameter	Specification
Power Supply	220 V ± 5 %, 50 Hz
Power Rating	400 W
Temperature Range	Up to 232 °C
Working Pressure	4.2 MPa (600 PSI)
Back Pressure	0.7 MPa (100 PSI)
Filtration Area	22.6 cm²
Maximum Cup Pressure	6 MPa (870 PSI)
Cup Capacity	175 ml
Gas Source	Nitrogen or CO₂
Dimensions	530 × 465 × 334 mm
Weight	36 kg

Every specification is engineered to ensure the High Temperature High Pressure Filter Press provides consistent, replicable, and trustworthy results.

How the HTHP Filter Press Works

The device operates using API-recommended procedures where temperature and pressure are finely controlled to simulate downhole filtration conditions.

During testing:

The mud sample is placed into the cup.
Pressure is gradually applied using Nitrogen or CO₂.
The heating jacket raises the temperature to desired levels.
Filtrate passes through the filter paper.
The filtrate volume and mud cake thickness are measured.

This process delivers dependable data critical for evaluating drilling fluid stability, rheology, and filtration behavior.

Major Components of the HTHP Filter Press

Principal machine assembly
Mud sample cup (with/without through-hole)
Insulated heating jacket
Pipe-manifold assembly
Tee coupling package
Filtrate receiver package
Temperature-control system

Each component is designed for durability and precise control, ensuring accurate filtration testing even under extreme conditions.

Safety Guidelines for Secure Operation

Because the HTHP Filter Press operates under high temperature and pressure, following safety protocols is essential:

Key Safety Practices

Release all residual pressure before opening the mud cup
Use only Nitrogen or CO₂—never oxygen or reactive gases
Increase pressure gradually to avoid damage
Prevent overheating by monitoring thermal controls
Always wear gloves, lab coats, and eye protection

Maintenance Tips for Long-Term Efficiency

Routine care extends the lifespan of the instrument and ensures consistent accuracy:

Inspect all O-rings, hoses, and connections regularly
Lubricate seals and moving parts
Always replace filter paper after each test
Inspect wiring and temperature control systems periodically
Store in a clean, moisture-free environment

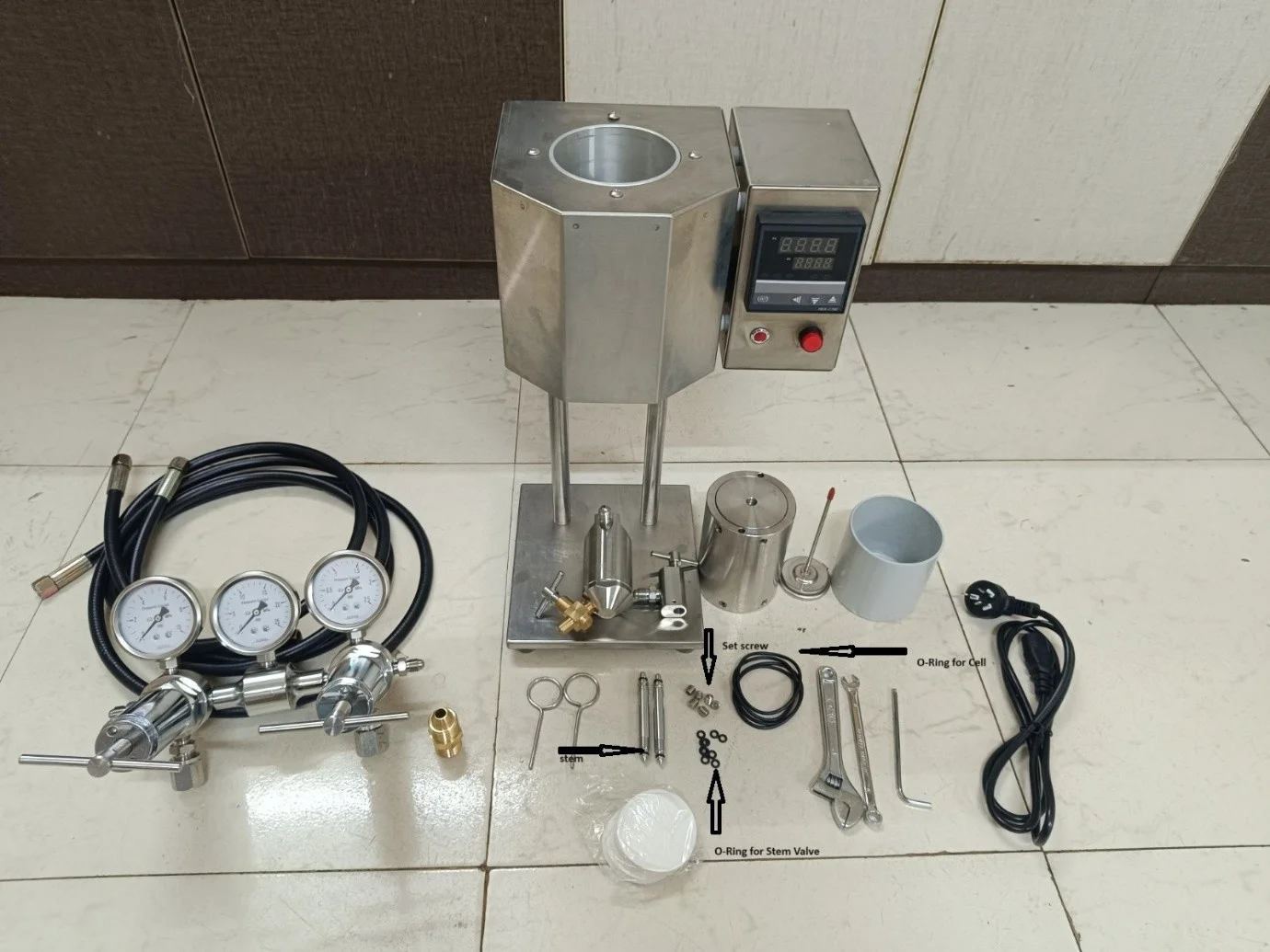

Accessories Included

Graduated cylinder (25 ml)
HTHP filter paper
Pipe-manifold assembly
Hex wrench
Fixed and adjustable wrenches
Multiple O-rings
Thermometers
Cup seat
High-pressure hoses
Tee coupling

Applications of the HTHP Filter Press

Fluid loss testing equipment applications
Oil-based and water-based mud filtration analysis
Cement slurry performance evaluation
Mud cake analysis under HTHP conditions
Petroleum laboratory research

Compliance Standards

API standards for HTHP filtration
JB/T 9329-1999 guidelines for transport and storage

Conclusion

The HTHP Filter Press – 175 ml is a high-precision, high-performance testing instrument essential for drilling engineers, researchers, and laboratories. Its accurate simulation of downhole conditions, robust construction, superior heating system, and compliance with global standards make it a reliable solution for evaluating drilling fluid and cement slurry behavior.

For petroleum operations seeking dependable drilling fluid filtration and high-temperature testing, this HTHP Filter Press stands as a trusted and indispensable choice.

Get in Touch:

We provide worldwide delivery, custom configurations, and technical support tailored to your operational needs.
