Introduction
In the oil and gas industry, maintaining the proper drilling fluid viscosity is essential for efficient and safe drilling operations. At Petropath Fluids India Ltd, we prioritize accuracy and simplicity in every step of our mud testing in oil and gas practices. Among the most trusted tools for field testing is the Marsh Funnel and Measuring Mug, widely used for quick and reliable viscosity measurements.
The Marsh Funnel is a time-tested device that measures the apparent viscosity of drilling fluids. Originally developed in the 1930s by H.N. Marsh, this tool provides a rapid field assessment of a fluid’s flow properties. It consists of a conical funnel with a calibrated orifice at the bottom, allowing fluid to flow out at a controlled rate.
By timing how long it takes for 946 ml (1 quart) of drilling mud to pass through the funnel, you can calculate the Marsh Funnel Viscosity, typically expressed in seconds. A reading of around 26 seconds for freshwater is considered standard—deviations may indicate issues such as solids buildup or contamination.

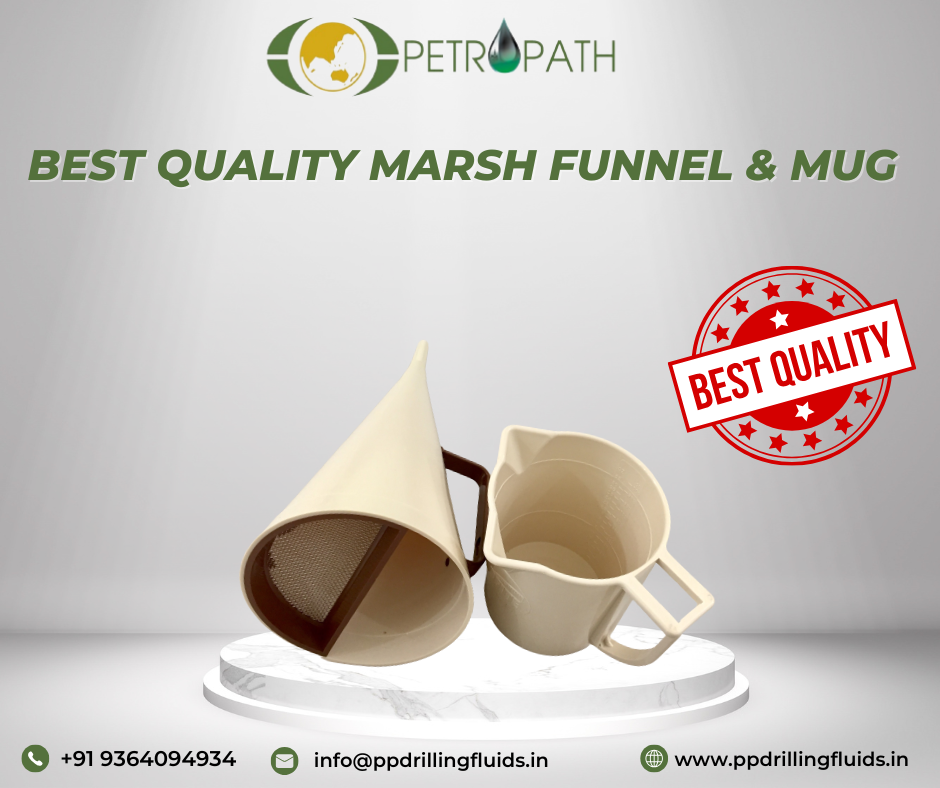

Paired with the Marsh Funnel, the measuring mug is a critical tool. Calibrated to hold exactly 946 ml, it ensures uniformity in test volumes across all field operations. Typically made of durable plastic or stainless steel, the mug helps maintain consistency in viscosity tests, ensuring reliable data for decision-making.
Uses include:
Uses include:
- Measuring standardized fluid volumes
- Supporting accurate and repeatable mud tests
- Simplifying training and procedures across teams
How to Use the Marsh Funnel and Measuring Mug:
Follow these steps for accurate field fluid monitoring:
- Block the funnel's orifice using your finger.
- Fill the Marsh Funnel with freshly circulated drilling fluid to the marked level.
- Start a stopwatch as you release your finger.
- Collect the fluid in the measuring mug.
- Stop the timer when the mug is full (946 ml).
- Record the time—this is your Marsh Funnel Viscosity.
Even with its simplicity, the Marsh Funnel and mug deliver crucial real-time insights. Variations in viscosity can indicate:
- Elevated solids content or improper additive mixing
- Contamination from formation fluids
- Changes in fluid density and flow efficiency
Routine monitoring allows engineers to adjust the mud properties for:
- Effective hole cleaning
- Reducing risks of differential sticking
- Ensuring proper pressure control
At Petropath Fluids India Ltd, we deploy the Marsh Funnel and measuring mug at all operational sites for consistent and dependable fluid analysis. These tools complement our use of advanced devices like the 6-speed viscometer and mud balance, enabling detailed and precise evaluations in both field and lab settings.
Our commitment to quality assurance, safety, and operational excellence drives every aspect of our mud engineering services.
