PP HTHP Filter Press – 175 ml for Precise Filtration Testing
Model & Features
| Description | Key Features |
|---|---|
| HTHP Filter Press (175 ml) | • Mud sample cup with through-hole • Heating jacket with insulation • High heating efficiency • Suitable for drilling fluids & cement slurry testing |
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 220 V ± 5 %, 50 Hz |
| Power Rating | 400 W |
| Working Temperature | Up to 232 °C |
| Working Pressure (Mud Cup) | 4.2 MPa (600 PSI) |
| Back Pressure | 0.7 MPa (100 PSI) |
| Effective Filtration Area | 22.6 cm² |
| Maximum Cup Pressure | 6 MPa (870 PSI) |
| Mud Sample Cup Capacity | 175 ml |
| Gas Source | Nitrogen or CO₂ (oil- and water-free) |
| Dimensions | 530 × 465 × 334 mm |
| Gross Weight | 36 kg |
Principle of Operation
Major Components

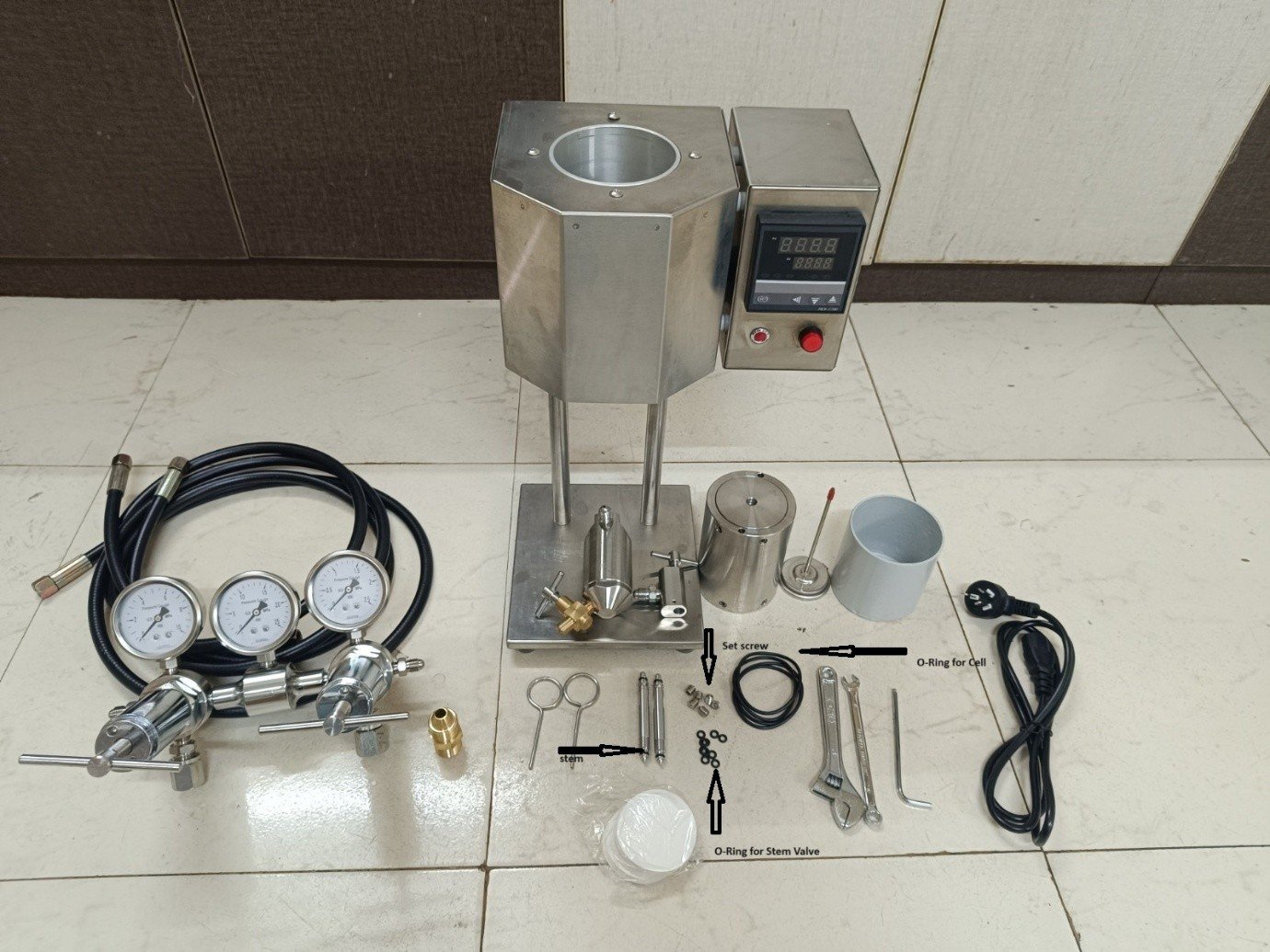

- Principal machine assembly
- Mud sample cup (with/without through-hole)
- Heating jacket with insulation
- Pipe-manifold assembly
- Tee coupling package
- Filtrate receiver package
- Electrical temperature-control system
Safety & Maintenance
Safety Guidelines:
Release Residual Pressure: Always ensure that all pressure in the mud cup is fully released before opening to avoid sudden fluid ejection.
Use Approved Gases Only: Only Nitrogen or CO₂ should be used as the gas source; oxygen or other reactive gases are strictly forbidden.
Gradual Pressure Increase: Slowly ramp up pressure during tests to prevent damage to filter paper, gauges, or the mud cup assembly.
Avoid Overheating: Monitor the heating jacket and electrical controls to maintain proper temperature limits, preventing accidents or equipment damage.
Personal Protective Equipment (PPE): Always wear appropriate gloves, eye protection, and lab coats during operation.
Maintenance Recommendations:
Regular Inspection: Check all “O”-rings, hoses, and connections for wear or leaks before and after each use.
Lubrication: Clean and lubricate moving parts and seals to maintain smooth operation.
Filter Paper Replacement: Use fresh HTHP filter paper for each test to ensure accurate results and prevent contamination.
Electrical System Checks: Periodically inspect wiring, switches, and temperature control systems for any faults or damage.
Storage: Store the instrument in a clean, dry environment to prevent corrosion or degradation of components.
Following these safety and maintenance practices ensures consistent performance, reduces downtime, and enhances the longevity of the PP HTHP Filter Press.
Accessories Supplied
| Item | Qty |
|---|---|
| Graduated cylinder (25 ml) | 1 |
| HTHP filter paper (988 type) | 1 |
| Pipe-manifold assembly | 1 |
| Hex wrench (4 mm) | 1 |
| Fixed wrench | 1 |
| Adjustable wrench (150 mm) | 1 |
| O-rings (various sizes) | Multiple |
| Thermometer (0–200 °C) | 2 |
| Cup seat | 1 |
| High-pressure hose (≥15 MPa) | 2 |
| Tee coupling | 1 |
Applications
The PP HTHP Filter Press is versatile for multiple testing environments, including:
Fluid loss determination in oil- or water-based muds
Cement slurry filtration testing
Mud cake property evaluation under HTHP conditions
Petroleum research and laboratory studies
Compliance
This equipment complies with:
API standards for HTHP filtration testing
JB/T 9329-1999 guidelines for storage and transport
