🚀 Screw Conveyor for Drilling Cuttings Transfer – The Ultimate Solution for Efficient Waste Handling

Screw Conveyor for Drilling Cuttings Transfer – A Powerful Upgrade for Modern Drilling Sites

Screw Conveyor for Drilling Cuttings Transfer is an essential system in oilfield operations, ensuring smooth, continuous, and controlled movement of drilling cuttings. Petropath Fluids India Ltd has engineered a high-performance solution designed to transport cuttings from shale shakers, mud cleaners, and desanders directly to Vertical Cuttings Dryers (VCDs) or disposal units. This oilfield screw conveyor improves safety, efficiency, and environmental compliance at drilling sites.
As drilling environments become more demanding, reliable solids transfer equipment is critical. This is why Petropath’s solution stands out in performance and durability.

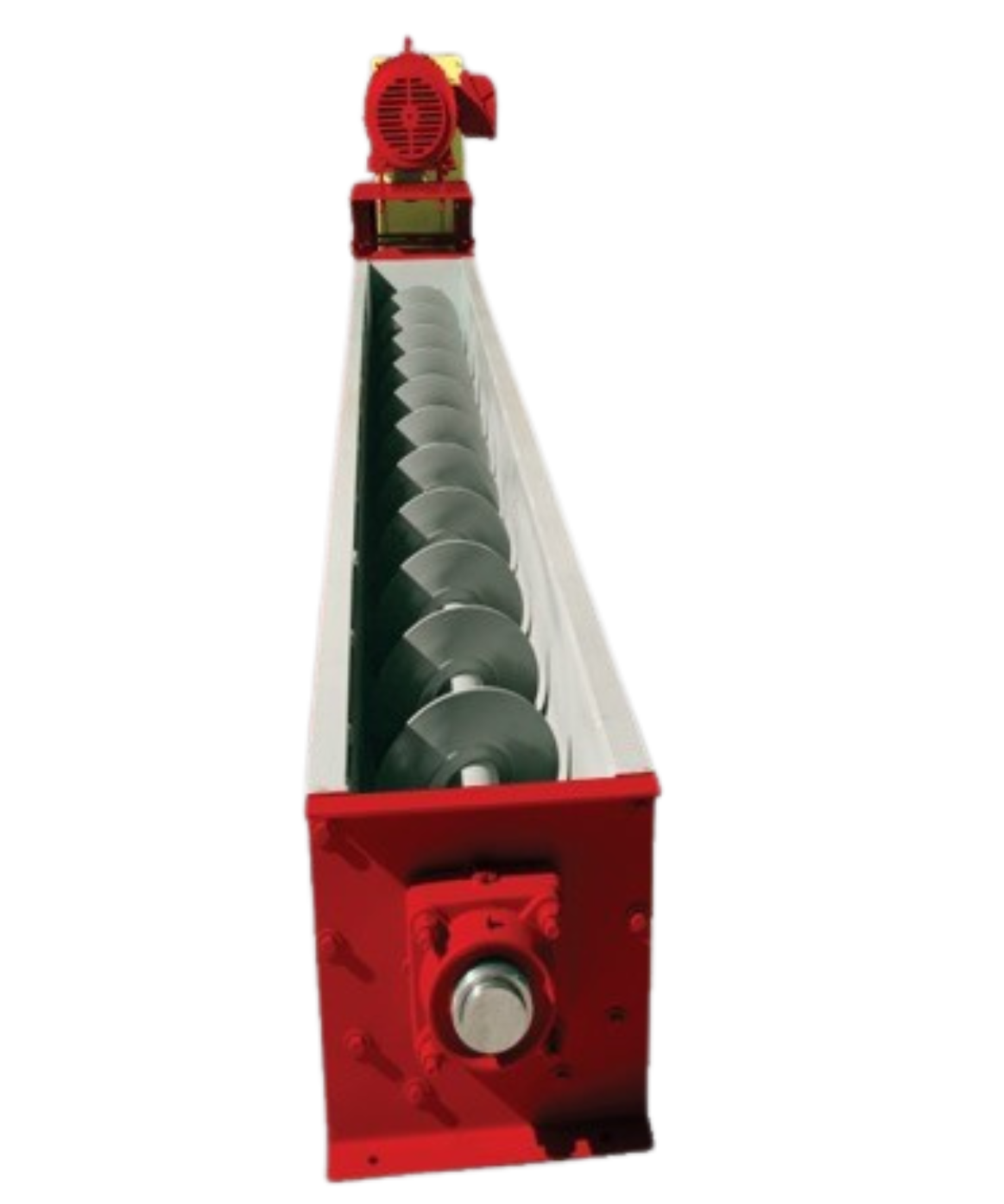

Screw Conveyor for Drilling Cuttings Transfer

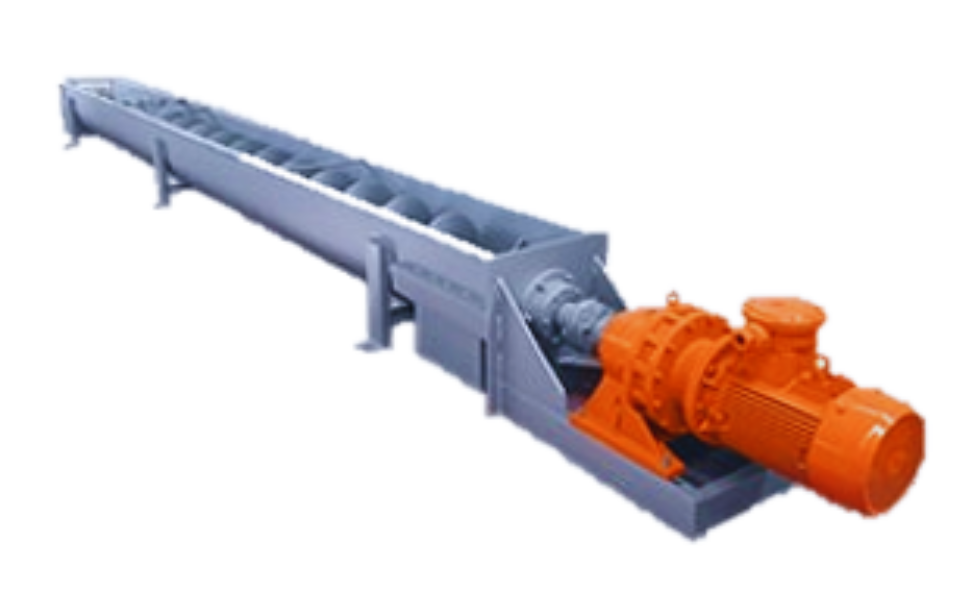

Screw Conveyor for Drilling Cuttings Transfer

Built for Reliability: Features That Stand Out

The Petropath solids control screw conveyor is engineered for rugged oilfield environments. It is designed to handle abrasive drilling cuttings with ease while ensuring stable performance, even in high-volume drilling operations.

Key features include:

  • Heavy-duty build for demanding drilling conditions

  • Controlled, stable transfer of drilling cuttings

  • High-torque drive system for efficient performance

  • Wear-resistant flights and troughs for long service life

  • Modular sections for easy installation and customization

  • Fully sealed structure to prevent spillage and odor

  • Available in horizontal, inclined, or custom layouts

These features combine to create a highly efficient cuttings handling system that minimizes manual labor and enhances safety.

Technical Specifications for Superior Performance

Each drilling site requires different equipment configurations. Petropath provides customization so the Screw Conveyor for Drilling Cuttings Transfer aligns perfectly with project needs.
ParameterSpecification
Conveyor Diameter12″ / 14″ / 16″ / 18″
Length3m – 18m modular
Capacity10 – 50 TPH
Flight Thickness8–12 mm (wear-resistant)
Trough MaterialCarbon Steel / Stainless Steel
Drive Motor5–15 HP (explosion-proof optional)
Rotation Speed20–60 RPM
Inclination Angle0° – 25°
Power Supply380/415V, 50/60Hz, 3 Phase
SealingFully enclosed with inspection ports
These specifications ensure the conveyor delivers consistent, long-term performance.

Operational Advantages of Petropath’s Screw Conveyor

Adopting the Petropath Screw Conveyor for Drilling Cuttings Transfer increases overall drilling efficiency. Operators benefit from:

✔ Streamlined drilling operations with uninterrupted solids flow
✔ Reduced manual handling and improved HSE compliance
✔ Longer equipment lifespan due to wear-resistant design
✔ Flexible layout options for diverse site conditions
✔ Quick maintenance thanks to modular parts
✔ Seamless integration with all solids control systems

These advantages support smoother drilling workflows while minimizing environmental impact.

Flexible Installation & Layout Options

Since every drilling site is unique, customizable installation options are crucial. Petropath provides a highly adaptable conveyor system suitable for different operational setups.

Available configurations:

  • Horizontal layout

  • Inclined or Z-shaped layout

  • Multi-entry and multi-discharge systems

  • Skid-mounted mobile units

  • Electric or hydraulic drive options

This adaptability makes it easy to integrate the cuttings handling system into existing site infrastructure.

Designed for Safety & International Compliance

Safety is a priority for Petropath, and their conveyor meets stringent oilfield and environmental standards. Built with operator protection in mind, the system ensures safe and worry-free operation.

Safety features include:

  • Explosion-proof motors (ATEX / IECEx optional)

  • Fully guarded rotating components

  • Emergency stop mechanisms

  • Leak-proof sealed covers

  • HSE-compliant construction

This guarantees that the equipment not only performs well but adheres to global safety requirements.

Low-Maintenance System for Maximum Uptime

Petropath simplifies maintenance with thoughtful engineering. The oilfield screw conveyor is designed for quick inspections, easy part replacement, and smooth operation.

Maintenance-friendly features:

  • Inspection access ports

  • Replaceable screw flights and liners

  • Lubrication ports for easy servicing

  • Modular construction for quick repairs

These elements reduce downtime and keep operations running efficiently.

Optional Upgrades for Enhanced Performance

For even more reliability and efficiency, Petropath offers optional enhancements:

  • Variable Frequency Drive (VFD)

  • Stainless steel flights

  • Drainage ports for liquid separation

  • Torque and temperature monitoring

  • Extra hardfacing for abrasion resistance

These upgrades allow operators to maximize conveyor performance in challenging drilling environments.

Why Petropath Leads the Drilling Waste Management Market

With years of expertise, Petropath Fluids India Ltd has become a trusted manufacturer of drilling waste management equipment. Their equipment is built with innovation, durability, and operator safety in mind.
The Screw Conveyor for Drilling Cuttings Transfer reflects Petropath’s commitment to offering high-value, dependable technologies that improve drilling operations.

Conclusion

The Screw Conveyor for Drilling Cuttings Transfer by Petropath Fluids India Ltd delivers unmatched efficiency, safety, and durability. With customizable design options, robust construction, and low-maintenance operation, it stands out as a critical component in modern drilling waste management. Operators looking for a dependable and high-performance oilfield screw conveyor will find this system to be an indispensable asset for improving overall solids control efficiency.

Get in Touch:

We provide worldwide delivery, custom configurations, and technical support tailored to your operational needs.
