🛠️ Spiral Body Barrel Reamer in HDD for Efficient Borehole Cleaning and Superior Drilling Performance
Horizontal Directional Drilling (HDD) has transformed modern underground construction, enabling precise and efficient pipeline installations. One of the most advanced tools used in this process is the spiral body barrel reamer in HDD, designed to enhance borehole cleaning and ensure smooth drilling operations.
Unlike conventional reamers, this innovative tool features a helical outer structure that significantly improves cuttings removal. At Petropath HDD, the spiral design is widely adopted to tackle complex soil conditions, ensuring operational efficiency and reduced downtime.

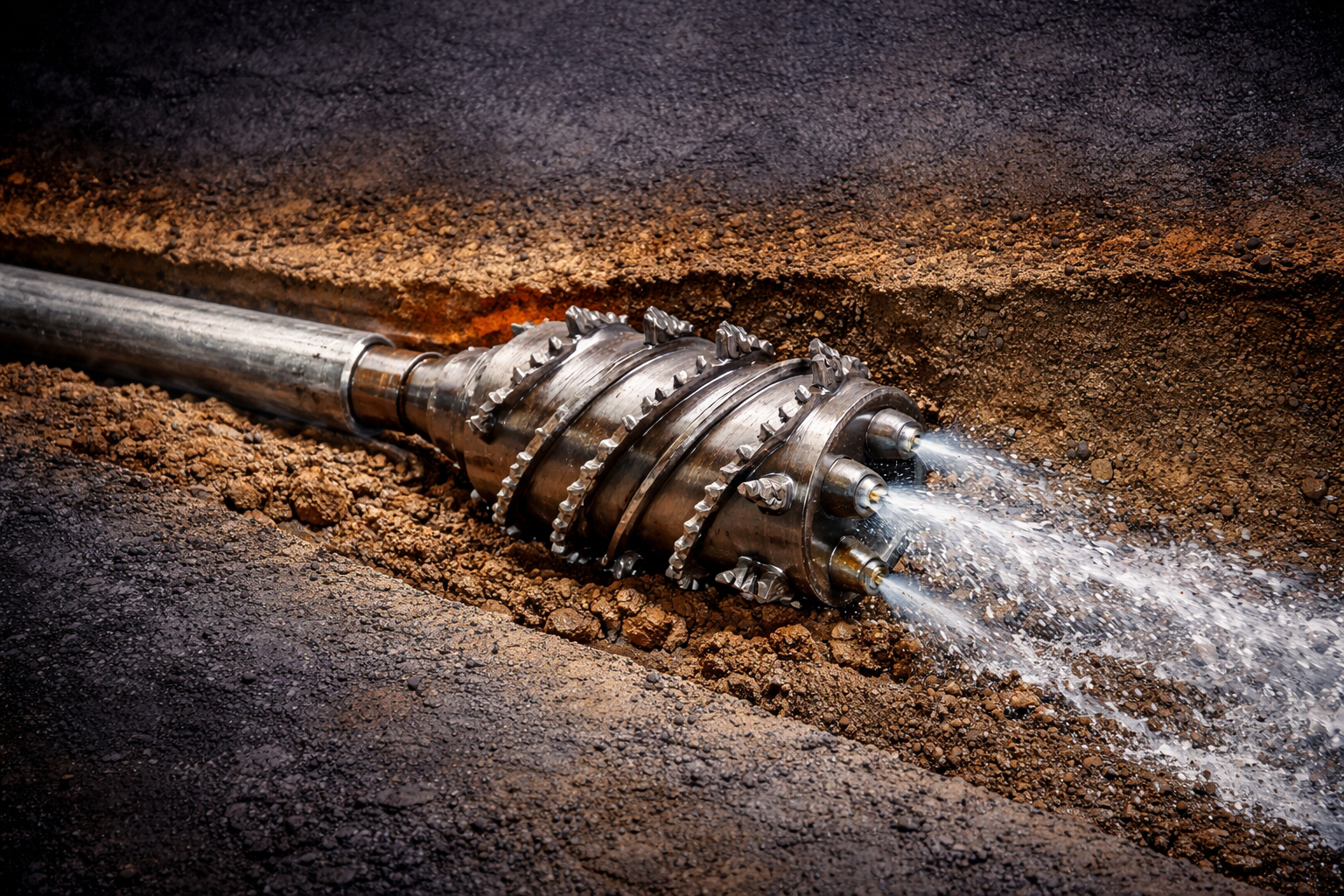

🔩 What is a Spiral Body Barrel Reamer in HDD?
A spiral body barrel reamer in HDD is a cylindrical hole-opening tool equipped with helical ribs or spiral flights along its outer body. These spirals function like a conveyor system, continuously transporting drilled cuttings out of the borehole.
This design makes it highly effective in preventing clogging and maintaining borehole stability. Compared to standard barrel reamers, it delivers consistent performance, especially in challenging formations where cuttings accumulation is a major issue.
At Petropath HDD, this tool is frequently used in projects where maintaining a clean borehole is critical for success.
⚙️ Key Design Features of Spiral Body Barrel Reamer
The performance of the spiral body barrel reamer in HDD depends on its advanced engineering and robust construction. Key features include:
- Helical (spiral) outer body for continuous cuttings movement
- High-quality carbide cutting teeth for durability
- Integrated jetting nozzles to enhance fluid circulation
- Balanced structure for smooth and vibration-free rotation
- Heavy-duty construction for long operational life
These features work together to improve drilling efficiency and reduce operational risks in HDD projects.
🔄 Working Principle
The working mechanism of a spiral body barrel reamer in HDD is simple yet highly effective:
- The reamer rotates within the borehole
- Spiral ribs push drilled cuttings backward
- Drilling fluid supports the transport of debris
- The borehole remains clean and structurally stable
This continuous cuttings removal process ensures that the drilling operation proceeds smoothly without interruptions. Compared to traditional designs, this reamer significantly reduces the chances of blockages and torque fluctuations.
🪨 Applications in HDD Operations
The spiral body barrel reamer in HDD is widely used across various drilling environments. It performs exceptionally well in:
✅ Suitable Conditions
- Mixed soil formations such as sand and clay
- Sticky clay where clogging is common
- Long HDD crossings requiring continuous cleaning
- High-viscosity mud conditions
❌ Not Recommended For
- Very hard rock formations (rock reamers are preferred)
- Extremely loose sand where jetting reamers are more effective
Its versatility makes it an essential tool in modern HDD operations, especially when borehole cleanliness is a priority.
⚖️ Advantages of Spiral Body Barrel Reamer in HDD
Using a spiral body barrel reamer in HDD offers multiple operational benefits:
- Excellent borehole cleaning efficiency
- Reduced risk of clogging and stuck tools
- Lower torque fluctuations during drilling
- Smooth and stable borehole formation
- Ideal for long-distance drilling projects
These advantages directly contribute to improved productivity and cost savings in HDD projects.
⚠️ Limitations to Consider
While highly effective, the spiral body barrel reamer in HDD also has certain limitations:
- Slightly higher cost compared to standard barrel reamers
- Requires proper drilling fluid management
- Not suitable for hard rock drilling
Understanding these factors helps in selecting the right tool for specific project conditions.
💡 Field Insights from Petropath HDD
Based on real-world HDD operations, Petropath HDD has identified several practical benefits of using the spiral body barrel reamer in HDD:
- The spiral structure acts like a conveyor, preventing internal accumulation
- Highly effective in high-viscosity mud conditions (50–70 seconds range)
- Minimizes risks such as stuck reamers and torque spikes
For optimal performance, it is recommended to combine this reamer with:
- Proper nozzle sizing
- Adequate pump capacity
- Well-designed mud programs
These factors ensure maximum efficiency and longer tool li
🔗 Typical HDD Setup
A standard HDD assembly using a spiral body barrel reamer in HDD includes:
Drill Rod → Spiral Barrel Reamer → Swivel → Pulling Head → Pipe
This configuration ensures efficient force transmission and smooth pipeline installation.
🚀 When to Use Spiral Body Barrel Reamer
At Petropath HDD, this tool is selected under the following conditions:
- Bore length exceeds 150 meters
- Soil conditions are sticky or mixed
- Cuttings removal is a major concern
- High-quality bore finish is required
Choosing the right reamer at the right time can significantly impact the success of an HDD project.
📈 Conclusion
The spiral body barrel reamer in HDD is a game-changing solution for efficient borehole cleaning and enhanced drilling performance. Its unique helical design ensures continuous removal of cuttings, reducing operational challenges and improving overall efficiency.
With expertise from Petropath HDD, this advanced reaming tool helps achieve:
- Cleaner and more stable boreholes
- Reduced operational risks
- Optimized drilling performance
For modern HDD projects, investing in the right reaming technology is essential for long-term success.
