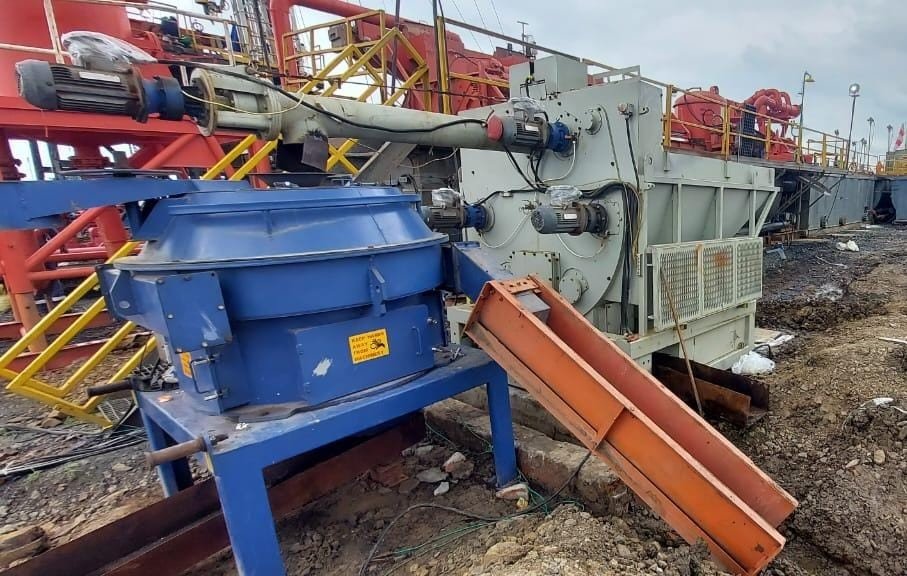

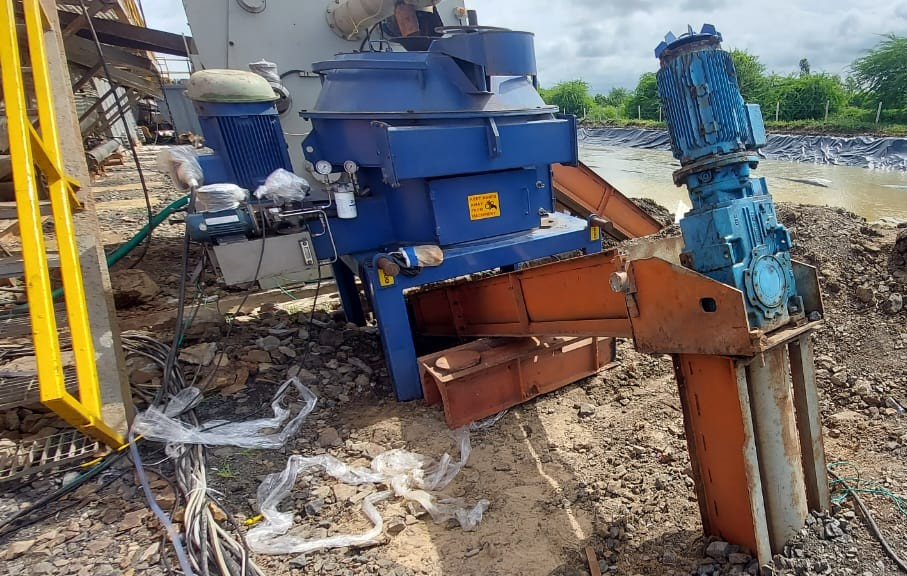

In the modern oil and gas industry, drilling waste management is a critical concern for operators who must balance performance, cost, and environmental compliance. The Vertical Cuttings Dryer PPVCD930 emerges as a breakthrough solids control equipment solution, engineered to maximize fluid recovery, reduce oil-on-cuttings, and streamline waste handling. In this article, we explore how This Cuttings Dryer PPVCD930 works, its technical attributes, advantages, and application scenarios — offering insights for companies seeking high-efficiency waste management systems.
What is a Vertical Cuttings Dryer and Why It Matters
A vertical cuttings dryer is specialized machinery used in drilling rigs to separate drilling fluids (mud) from rock cuttings produced during drilling. The concept is akin to a centrifuge: high G-forces spin the mixture to segregate solids and liquids. The recovered liquids can be returned to the drilling system, while the dry solids are discharged with minimal oil content.
This Cuttings Dryer PPVCD930 is a top-tier model that excels in drilling waste management, especially when operators demand reliable performance under stringent environmental regulations. By reducing the volume of waste and recovering valuable fluids, it offers a cost-effective and sustainable solution to the challenges of solid-liquid separation in drilling operations.
How It Works
- Feed from shale shaker: Cuttings (rock fragments with residual mud) are routed from the shale shaker unit into the Vertical Cuttings Dryer PPVCD930 feed hopper.
- High-speed separation: The internal rotor spins at up to 900 RPM, creating intense centrifugal force to drive liquid outward and retain solids toward the screen.
- Fluid recovery: The separated drilling fluid is collected and returned to the active mud system, optimizing fluid recovery and reducing waste of expensive drilling mud.
- Dry solids discharge: The residual solids — now with substantially lower oil-on-cuttings — are discharged for disposal or further treatment. Typical oil-on-cuttings levels drop below 5%.
- Continuous operation: The process is continuous, automated, and designed for minimal operator intervention.
Key Benefit:
- Maximized Fluid Recovery: Efficient separation enables reclaiming more drilling fluids, elevating fluid recovery and saving costs in mud makeup.
- Environmental Compliance: The system ensures oil-on-cuttings levels remain under regulatory thresholds (often <5 %) in both onshore and offshore settings.
- Reduced Waste Volume: Lower waste disposal, transportation, and handling costs.
- Improved Solids Control: As part of a complete solids control equipment train, the dryer produces cleaner mud for downstream equipment.
- Enhanced Rig Efficiency: Minimal downtime, continuous operation, and automated control features support rigorous drilling schedules.
Technical Specifications & Operational Features
| Parameter | Specification |
|---|---|
| Treatment Capacity | 30–55 tons per hour |
| Surface Moisture | 4 % – 10 % |
| Screen Diameter | 930 mm |
| Rotary Speed | Up to 900 RPM |
| Oil Tank | 48 litres |
| Power | 25–55 kW motor |
| Lubrication | Centralized automatic lubrication |
| Sealing | Triple sealing to eliminate leaks |
Construction & Design Highlights
Carbon steel housing with anti-corrosion coating ensures durability under harsh environmental conditions.
Stainless steel screen basket, dynamically balanced to reduce vibration.
Heavy-duty gearbox with torque protection and overload safeguards.
Automatic lubrication and protective systems (pressure, temperature) simplify maintenance and extend service life.
Optional accessories such as screw conveyors, explosion-proof motors, and skid-mounted bases enhance versatility.
Applications & Use Cases
- Oil-based mud (OBM) and water-based mud (WBM) systems, where effective fluid-solid separation is critical
- Onshore and offshore rigs, including deepwater platforms
- High pressure–high temperature (HPHT) and coal bed methane (CBM) wells
- Environmentally sensitive drilling sites requiring strict discharge standards
Compliance, Safety & Maintenance
- Designed to satisfy global discharge standards in offshore and onshore operations
- Protective systems for motors, lubrication circuits, and gearboxes guard against overload, pressure spikes, and abnormal temperatures
- Simplified maintenance via centralized lubrication, easy access to components, and modular parts
- Routine inspections can be carried out quickly, minimizing downtime and ensuring continuous operation
Petropath Fluids India Ltd stands as a trusted leader in drilling waste management and solids control equipment manufacturing. With decades of experience and a proven field record, Petropath delivers high-performance systems like the Vertical Cuttings Dryer PPVCD930, designed for efficiency, safety, and sustainability. Each product undergoes rigorous testing to meet global quality and environmental standards.
Our strength lies in providing integrated waste management solutions — combining advanced equipment, specialty drilling fluids, and expert technical support. From design and commissioning to maintenance and operator training, we ensure seamless performance and long-term reliability.
Conclusion
The Vertical Cuttings Dryer PPVCD930 represents a landmark advancement in waste management and solids control equipment. With its ability to reclaim drilling fluids, keep oil-on-cuttings low, and support regulatory compliance, it offers a compelling return on investment. Supported by Petropath Fluids India Ltd’s technical expertise and integrated solutions, this unit is well-suited to demanding drilling environments — onshore or offshore.
We provide worldwide delivery, custom configurations, and technical support tailored to your operational needs.
