Wedge Bar for Shale Shaker Screens – Strong Support for Longer Screen Life

Wedge Bar for Shale Shaker Screens is a critical structural component in drilling rig solids control systems. While shaker screens separate drilling cuttings from drilling mud, they can only perform efficiently if they are supported by a strong, reliable accessory beneath them. A high-quality Wedge Bar for Shale Shaker Screens ensures stability, prevents sagging, and protects the screen against continuous vibration damage.
At Petropath, we specialize in manufacturing engineered wedge bars that deliver unmatched performance. Our oilfield-proven solutions ensure screen longevity, better fluid processing, and reduced downtime on offshore and onshore drilling rigs.

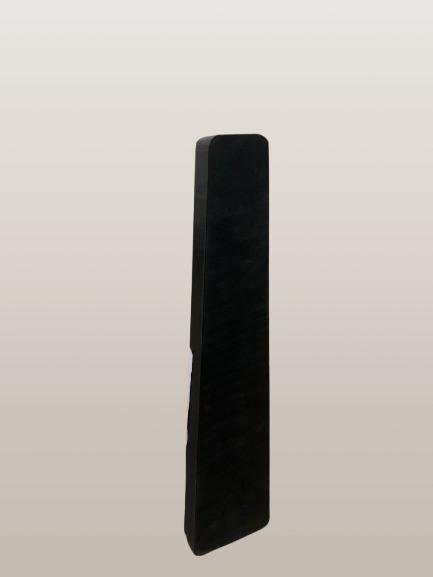

Wedge Bar for Shale Shaker Screens

🧩 What Is a Wedge Bar for Shale Shaker Screens?

A Wedge Bar for Shale Shaker Screens is a precision-built support bar installed below the shaker screen. Its primary functions include:

  • Holding the shale shaker screen firmly in position

  • Preventing screen bending, sagging, or frame gaps

  • Reducing damage from continuous high-G vibration

  • Maintaining sealing for uninterrupted shaker operation

  • Enhancing solids removal performance

Think of the shale shaker wedge bar as the foundation that stabilizes the screen, ensuring consistent performance even under harsh drilling conditions.

Wedge Bar for Shale Shaker Screens

🛢️ Importance of Wedge Bars in Solids Control Operations

Using a high-quality Wedge Bar for Shale Shaker Screens directly impacts productivity and cost-efficiency.

✔️ 1. Extends Screen Life

Shaker screens are expensive consumables. A wedge bar distributes load evenly, reducing fatigue and premature wear.

✔️ 2. Maintains Smooth High-Speed Vibration

The wedge bar stabilizes the deck, resulting in efficient solids separation and reduced mud losses.

✔️ 3. Saves Operational & Maintenance Costs

When the shale shaker screen support is strong, screen replacement frequency decreases—cutting downtime and cost per well.

✔️ 4. Improves Overall Solids Control Efficiency

Stable screens mean cleaner mud, better flow capacity, and improved drilling penetration.

🏢 Petropath Wedge Bars – Built for Every Shale Shaker Brand

Petropath designs Wedge Bar for Shale Shaker Screens compatible with global OEMs. Our portfolio includes wedge bars for:

  • DERRICK Shale Shaker Screens

  • NOV BRANDT Shale Shaker Screens

  • SWACO Shale Shaker Screens

  • KEMTRON Shale Shaker Screens

  • FSI Shale Shaker Screens

  • Custom Metal / Composite Screens

Whether your solids control system uses flat screens, pyramid screens, or custom plate-style screens, Petropath provides the perfect fit.

🧱 Key Features of Petropath Wedge Bars

  • High-Strength Steel / PU-Coated Construction
  • Precision Machined for Accurate, Tight Support
  • Excellent Abrasion & Wear Resistance
  • Corrosion-Protective Coating for Long Life
  • Quick Drop-In or Bolt-On Installation
  • Engineered for High-G Shale Shaker Operations

⚙️ Technical Specifications – Petropath Wedge Bars

ParameterSpecification
MaterialHigh-strength steel / Polyurethane-coated
ApplicationShale shaker screen support
CoatingAnti-corrosion & wear-resistant
Operating Temperature−40°C to +120°C
Abrasion ResistanceHigh
Installation TypeDrop-in / bolt-on
CompatibilityDERRICK, NOV BRANDT, SWACO, KEMTRON, FSI
Customization AvailableYes

🌍 Application Areas

Our shale shaker wedge bar is widely used across oil & gas drilling:

  • Onshore drilling rigs

  • Offshore deepwater platforms

  • Exploration, development & workover drilling

  • Oil-based, water-based & synthetic mud systems

🧭 Why Choose Petropath?

Oilfield conditions demand rugged components—at Petropath, we engineer for reliability, not just compatibility.

🛠️ Advantages of Petropath

  • Field-Tested Solids Control Components

  • OEM-Compatible & Custom Manufacturing

  • Precise Fitment for Zero-Gap Screen Seating

  • Consistent Quality & Stable Supply Chain

  • Expert Technical Support Availabl

📦 Ordering & Custom Fabrication

Petropath can manufacture wedge bars based on:

  • Shaker model

  • Screen dimensions

  • Material selection

  • Surface finish requirement

Bulk orders, OEM supply partnerships & urgent offshore deliveries are supported.

🏁 Conclusion – Engineered Support Designed for Performance

A Wedge Bar for Shale Shaker Screens may appear small, but its impact on drilling efficiency is large. It protects screens, improves solids control, and ensures vibration stability. Choosing high-quality support components helps drilling companies reduce operational costs and maintain continuous productivity.
When you choose Petropath, you get wedge bars engineered for oilfield challenges, supported by expert quality control and reliable delivery.

✅ Final Call to Action:

Ready to increase shaker screen life and performance? Contact Petropath today for pricing, OEM quotes, or custom-engineered wedge bar solutions.

Contact Us

We provide worldwide delivery, custom configurations, and technical support tailored to your operational needs.
