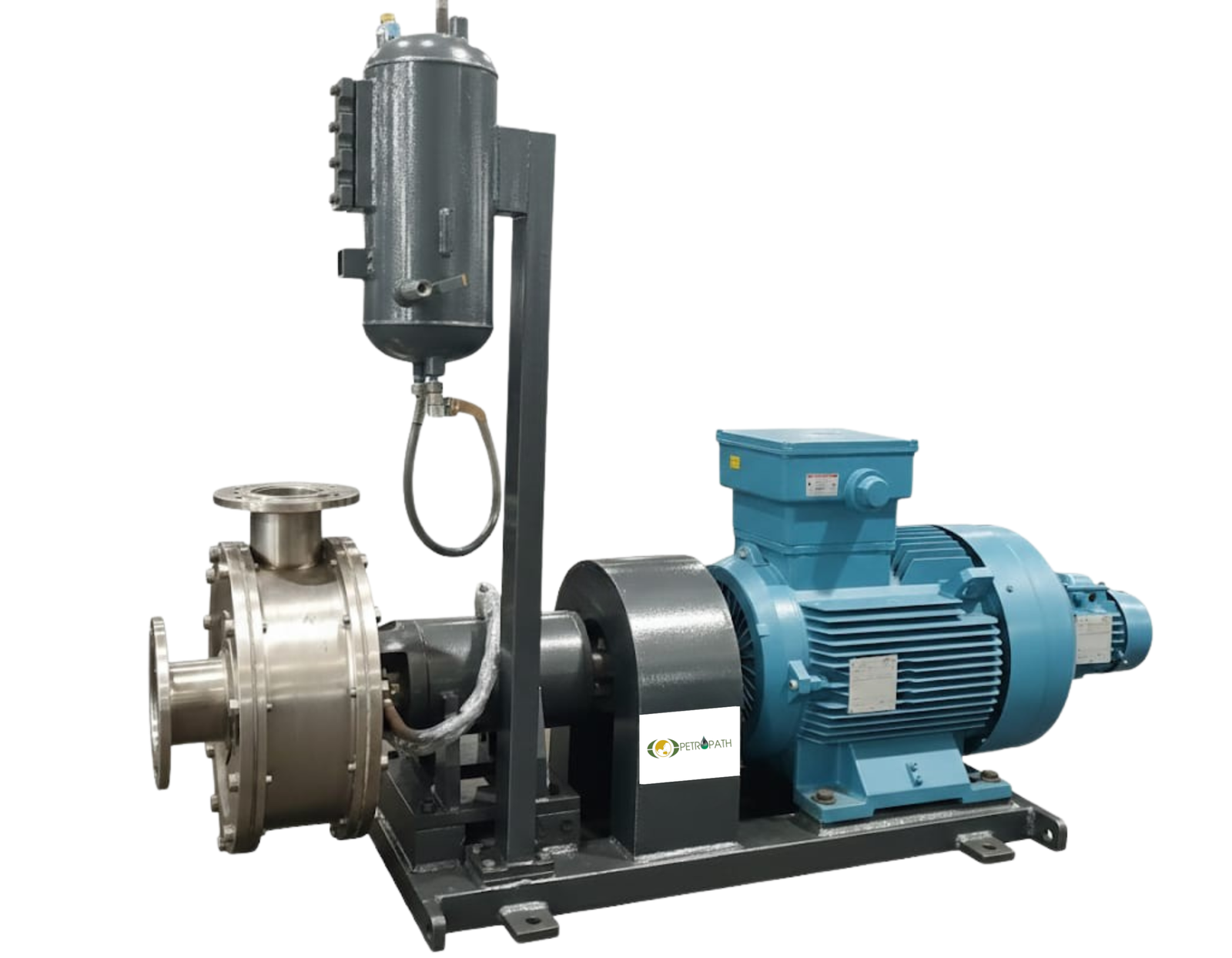

PP-800LS High Shear In-Line Mixer for Efficient Drilling Fluid Processing
The PP-800LS High Shear In-Line Mixer is engineered to deliver exceptional mixing performance for modern drilling fluid systems. In demanding oilfield operations, efficient fluid preparation directly impacts drilling speed, mud stability, and overall operational efficiency. This advanced high-pressure mixing solution is specifically designed to provide intense and controlled shear energy for superior chemical dispersion, polymer hydration, and emulsifier activation.
Manufactured by Petropath Fluids India Ltd., the PP-800LS High Shear In-Line Mixer is suitable for water-based mud systems, oil-based mud systems, and synthetic oil-based mud applications. Its advanced rotor-stator technology ensures uniform particle distribution and consistent drilling fluid quality in both onshore and offshore operations.
Why the PP-800LS High Shear In-Line Mixer Is Important in Drilling Operations
In oilfield environments, drilling fluids require proper mixing and hydration to maintain optimal rheological properties. Poorly mixed mud systems can lead to inefficient drilling, unstable boreholes, and excessive chemical consumption. The PP-800LS High Shear In-Line Mixer solves these challenges by providing rapid and uniform shearing action.
This advanced drilling mud mixer creates high turbulence and controlled shear intensity that accelerates polymer wetting and improves emulsification performance. Operators benefit from reduced mixing time, improved drilling fluid stability, and better chemical utilization.
The system is widely used as a:
- High pressure mixer for drilling fluids
- Continuous drilling mud mixer
- Oilfield inline mixer
- Polymer hydration unit
- SOBM shearing unit
Its ability to maintain continuous flow while delivering high-intensity shear makes it ideal for large-scale mud plants and rig environments.
Advanced Engineering Behind the PP-800LS High Shear In-Line Mixer
The PP-800LS High Shear In-Line Mixer is designed using precision-engineered components that ensure long-term durability and consistent mixing efficiency under high-pressure conditions.
Stainless Steel Construction
The mixer features SS 316L stainless steel contact parts that offer excellent corrosion resistance in aggressive drilling fluid environments. This durable construction improves equipment longevity and minimizes maintenance requirements.

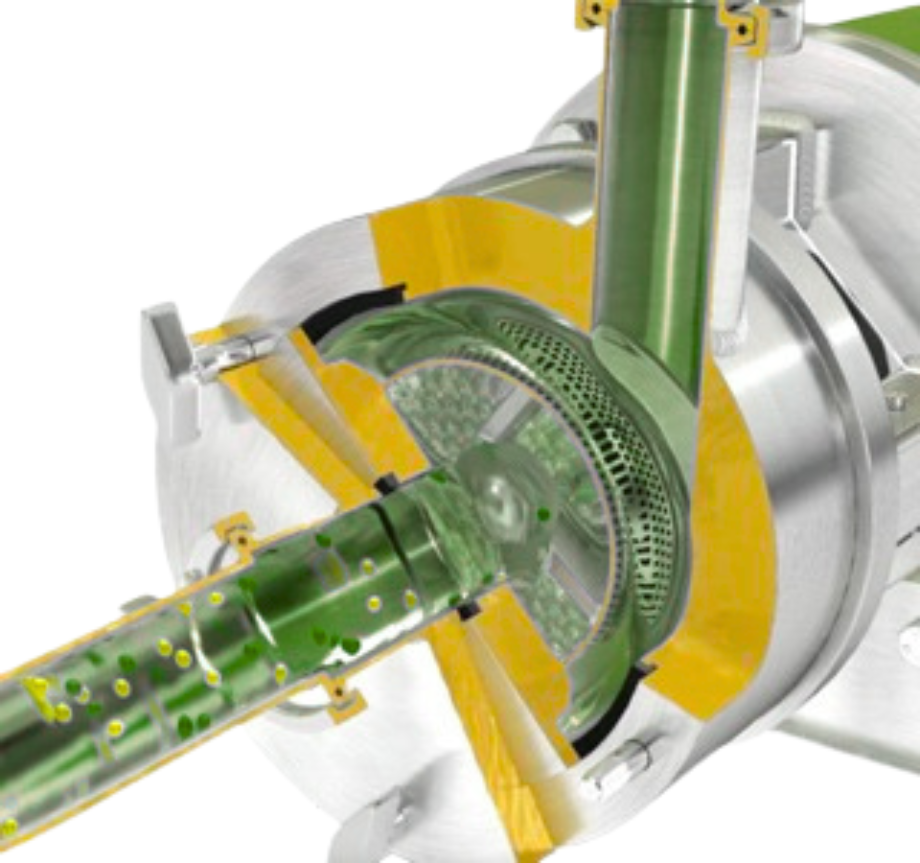

Rotor-Stator Technology
One of the key strengths of the PP-800LS High Shear In-Line Mixer is its advanced rotor-stator configuration. The system includes:
- 8-bladed Sverker rotor
- 3 mm fine slotted Sverker stator head
- High-intensity shearing mechanism
This configuration creates rapid particle size reduction and superior chemical activation. The result is faster polymer hydration and enhanced mud consistency.
Efficient In-Line Design
The horizontal direct in-line entry configuration allows seamless integration into existing mud systems. The 4-inch ASA flanged inlet and outlet simplify installation while ensuring efficient flow management.
This design improves the operational performance of the drilling mud mixer while reducing pressure losses during continuous operation.
Performance Features of the PP-800LS High Shear In-Line Mixer
The PP-800LS High Shear In-Line Mixer is built to handle demanding drilling applications where high-capacity mixing and reliable shearing are essential.
High-Capacity Mixing Performance
The system operates efficiently within a 250–350 GPM range depending on fluid properties. This allows operators to process large fluid volumes while maintaining consistent shear intensity.
High-Pressure Capability
The mixer is designed for operating pressures up to 100 psi with a typical differential pressure of approximately 40 psi. This enables stable and efficient mixing even in challenging drilling environments.
Variable Frequency Drive Integration
The mixer includes VFD-driven shearing capability that allows operators to adjust shear intensity according to drilling fluid characteristics. This flexibility improves process control while optimizing energy consumption.
Powerful Motor System
The equipment is powered by a 120 HP motor with a base speed of 300 RPM and operational capability up to approximately 4500 RPM through a frequency inverter. The TEFC IP55 enclosure ensures reliable operation in harsh industrial conditions.
These features make the PP-800LS High Shear In-Line Mixer an ideal solution for continuous drilling fluid preparation.
Applications of the PP-800LS High Shear In-Line Mixer
The PP-800LS High Shear In-Line Mixer supports multiple drilling fluid applications across the oil and gas industry.
Water-Based Mud Systems
In WBM applications, the mixer enhances viscosifier hydration and ensures proper chemical dispersion. This improves mud stability and drilling efficiency.
Oil-Based and Synthetic Oil-Based Mud Systems
As a dedicated SOBM shearing unit, the system provides efficient emulsifier activation and superior fluid consistency. This is critical for maintaining stable emulsion properties during drilling operations.
Bulk Mud Plants
The equipment functions effectively in large-scale mud preparation facilities where continuous mixing and high throughput are required.
Offshore Drilling Platforms
Its rugged construction and reliable performance make it suitable for offshore environments where durability and operational reliability are essential.
Polymer Hydration Systems
The mixer rapidly hydrates polymers, reducing preparation time and minimizing chemical waste.
Key Benefits of the PP-800LS High Shear In-Line Mixer
The PP-800LS High Shear In-Line Mixer offers several operational and economic advantages for drilling contractors and mud engineers.
Faster Chemical Dispersion
The high-intensity shearing action ensures rapid and uniform chemical mixing.
Reduced Mixing Time
Operators can prepare drilling fluids more efficiently, improving productivity.
Lower Chemical Consumption
Improved hydration and emulsification reduce chemical wastage.
Consistent Mud Quality
Uniform particle distribution enhances drilling fluid performance.
Easy Maintenance
Included rotor and stator removal tools simplify servicing procedures.
Long Equipment Life
Durable stainless steel construction improves operational lifespan.
Reliable Continuous Operation
The system is designed for uninterrupted drilling mud circulation and mixing.
Why Oilfield Operators Choose the PP-800LS High Shear In-Line Mixer
The PP-800LS High Shear In-Line Mixer combines advanced engineering, rugged durability, and high-capacity performance in a single system. Oilfield operators rely on this mixer for efficient drilling fluid preparation and dependable long-term operation.
Its advanced rotor-stator technology delivers superior shearing efficiency while maintaining consistent fluid properties. The ability to process both water-based and oil-based mud systems makes it a versatile solution for diverse drilling projects.
With support for polymer hydration, chemical activation, and continuous mud mixing, this equipment helps operators reduce downtime and improve drilling performance.
Conclusion
The PP-800LS High Shear In-Line Mixer is a high-performance solution designed for advanced drilling fluid preparation and shearing applications. Its precision rotor-stator system, high-pressure capability, and durable construction make it ideal for oilfield environments that demand reliability and efficiency.
Whether used as a drilling mud mixer, polymer hydration unit, or SOBM shearing unit, this system delivers rapid dispersion, improved mud consistency, and optimized operational performance. For drilling contractors seeking dependable fluid mixing technology, the PP-800LS High Shear In-Line Mixer remains a trusted and efficient choice.
For product specifications, technical consultation, custom integration, or pricing support related to the PP-800LS High Shear In-Line Mixer, contact Petropath Fluids India Ltd. for professional drilling fluid solutions and engineering assistance.
